01 Time Series
Visualize time series data in Grafana.

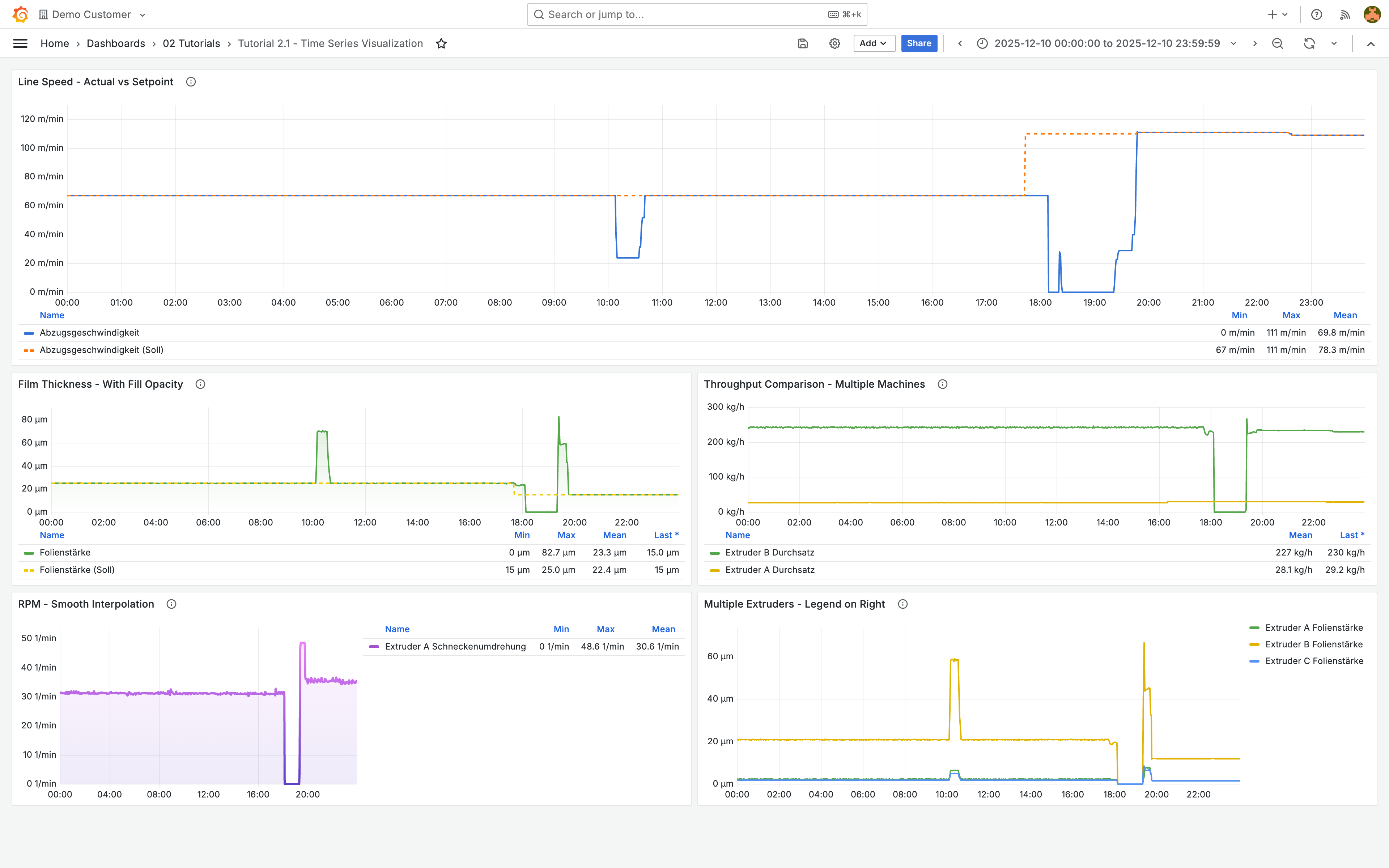

Time series charts are the most common visualization in manufacturing dashboards. They show how process parameters like temperature, pressure, and speed change over time. In this tutorial you will build a dashboard like this step by step:
What you will learn
Display multiple variables in a single chart
Compare actual values with setpoints
Customize line styles (colors, dashed lines, fill)
Configure legends with statistical calculations
Prerequisites
Completed Tutorial 1.2: Your first dashboard
A dashboard with at least one time series panel
Multiple variables in a single chart
There are two ways to display multiple variables:
Multiple variables in one query
The simplest approach when the variables come from the same machine:
Edit your time series panel (click the panel title, then Edit)
In the Variables section, click the + icon to add another variable dropdown
Select the desired variable from the new dropdown
Repeat this for each additional variable. Variables that are already selected will not appear in the list again.
All selected variables appear as separate lines in the chart. This is best for comparing related measurements from the same machine (for example, multiple temperature sensors).

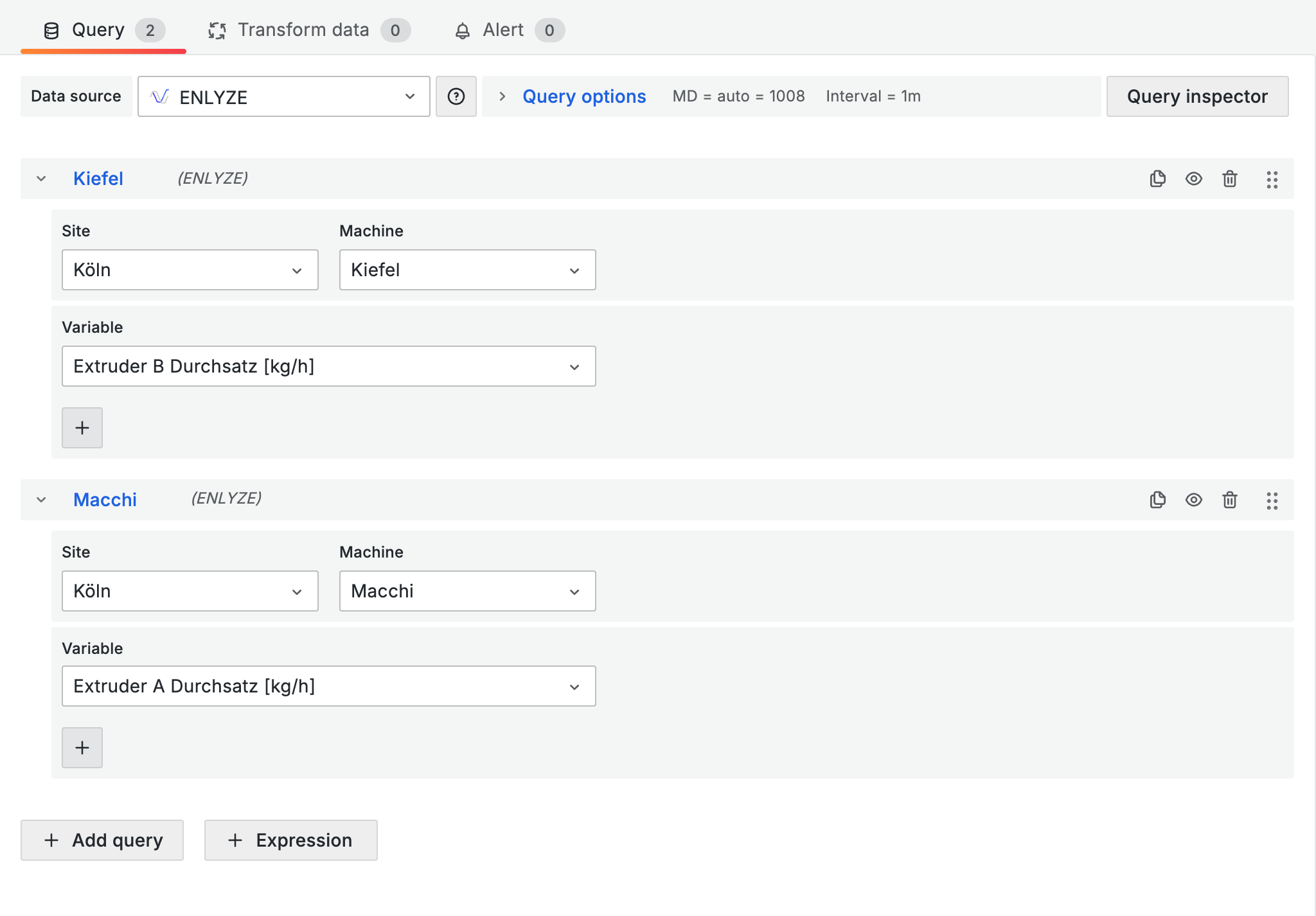

Multiple queries
Use this method when you need variables from different machines or want to control each query individually:
In the query editor, click + Query to add a new query
Configure the second query with a different site, machine, or set of variables
Each query appears as its own section (Query A, Query B, etc.)
Best for comparing the same variable across different machines.
Comparing actual and setpoint values
A common manufacturing use case: compare measured values (actual) with target values (setpoint) and make them visually distinguishable.
Select variables
In your query, select both the actual and the setpoint variable (for example, "Abzugsgeschwindigkeit" and "Abzugsgeschwindigkeit (Soll)").
When you have multiple variables, Grafana automatically assigns default colors and styles. To customize color, line style, or other properties per variable, use Overrides.
Configure overrides

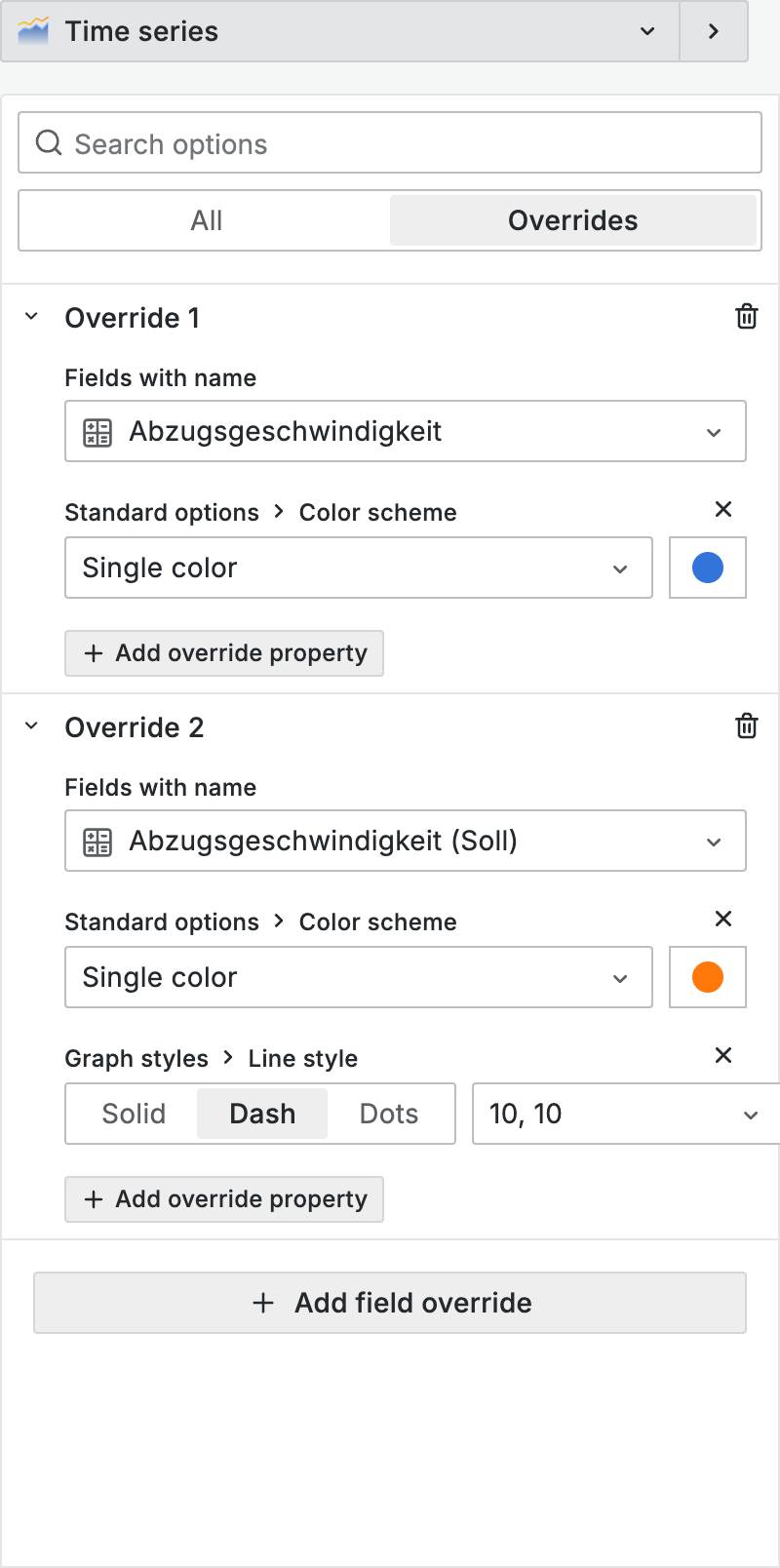

Field overrides let you style each data series individually:
In the right sidebar, scroll down to Overrides
Click + Add field override and select Fields with name
Select the actual value and set a fixed color (for example, blue)
Add a second override for the setpoint
Set a different color (for example, orange) and under Graph styles > Line style, choose Dash

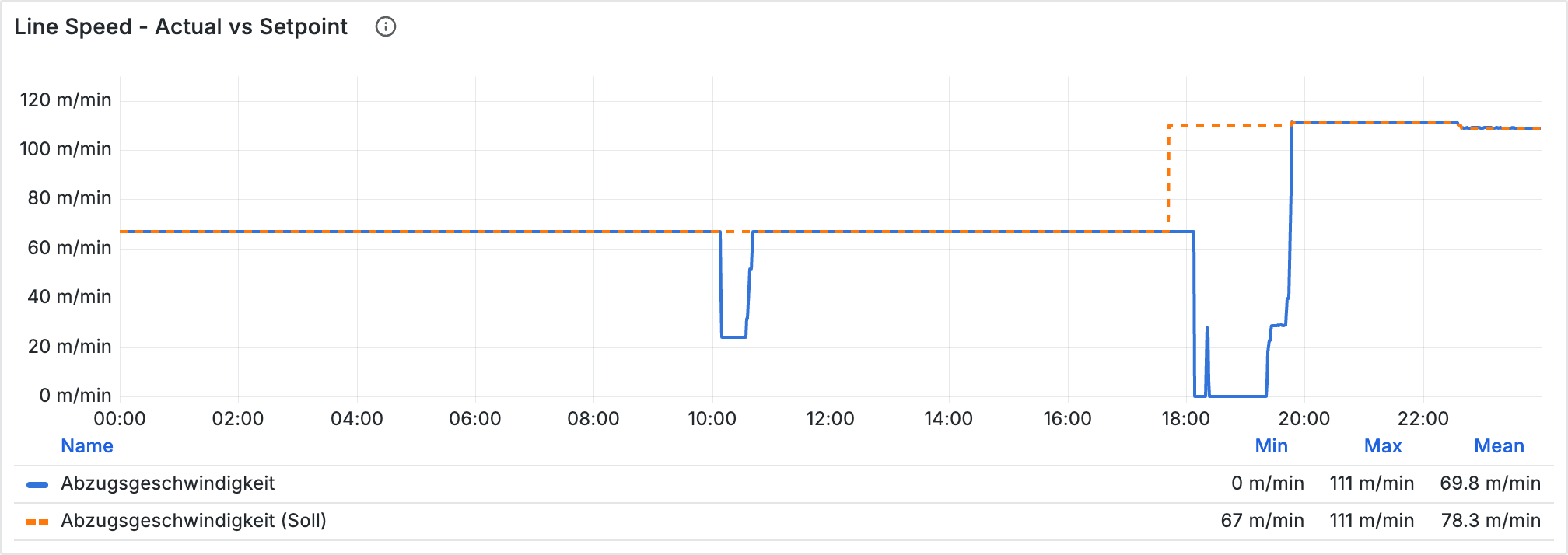

The result: the actual value appears as a solid blue line, the setpoint as a dashed orange line.
Line styling
You can find the style options in the right sidebar under Graph styles. Here are the most important settings:
Line width and fill
Line width: Default is 1. Increase to 2 or 3 for more prominent lines (for example, on shopfloor monitors).

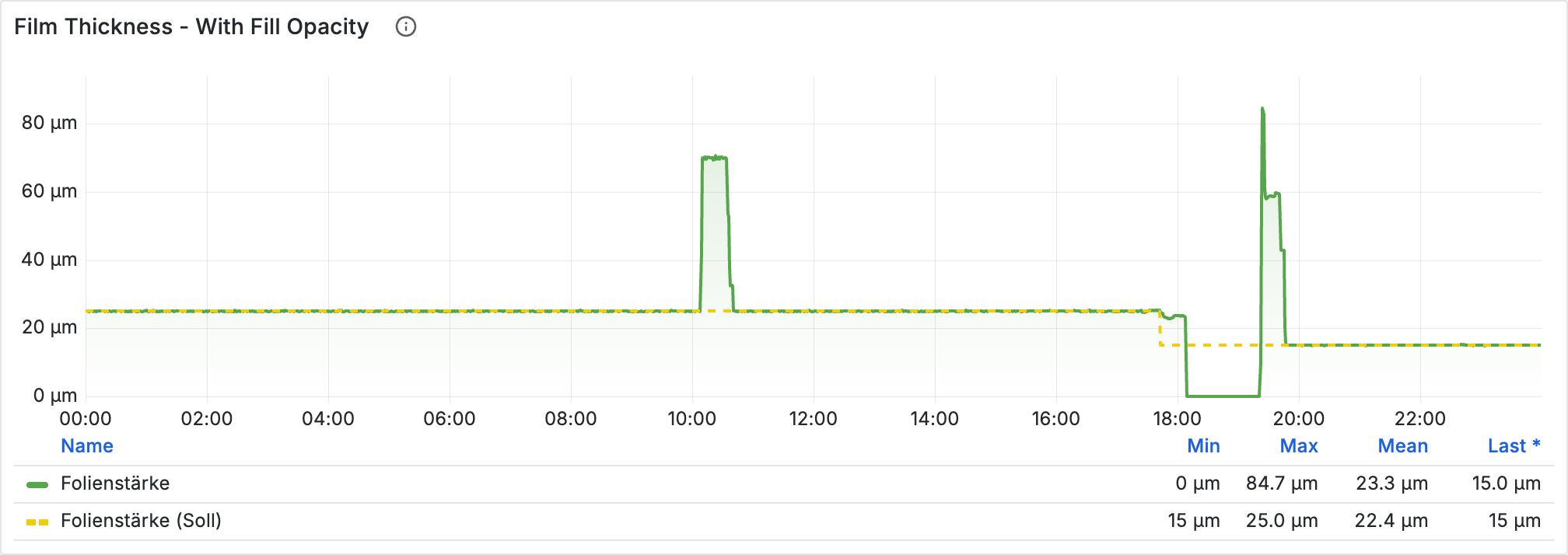

Fill opacity: Adds a shaded area under the line. A subtle fill (10-30%) helps distinguish overlapping lines.
Gradient mode
Under Gradient mode you can create a color gradient in the fill area:
None
Solid fill
Opacity
Fades from top to bottom
Hue
Color shifts across the gradient
Scheme
Uses the color scheme gradient

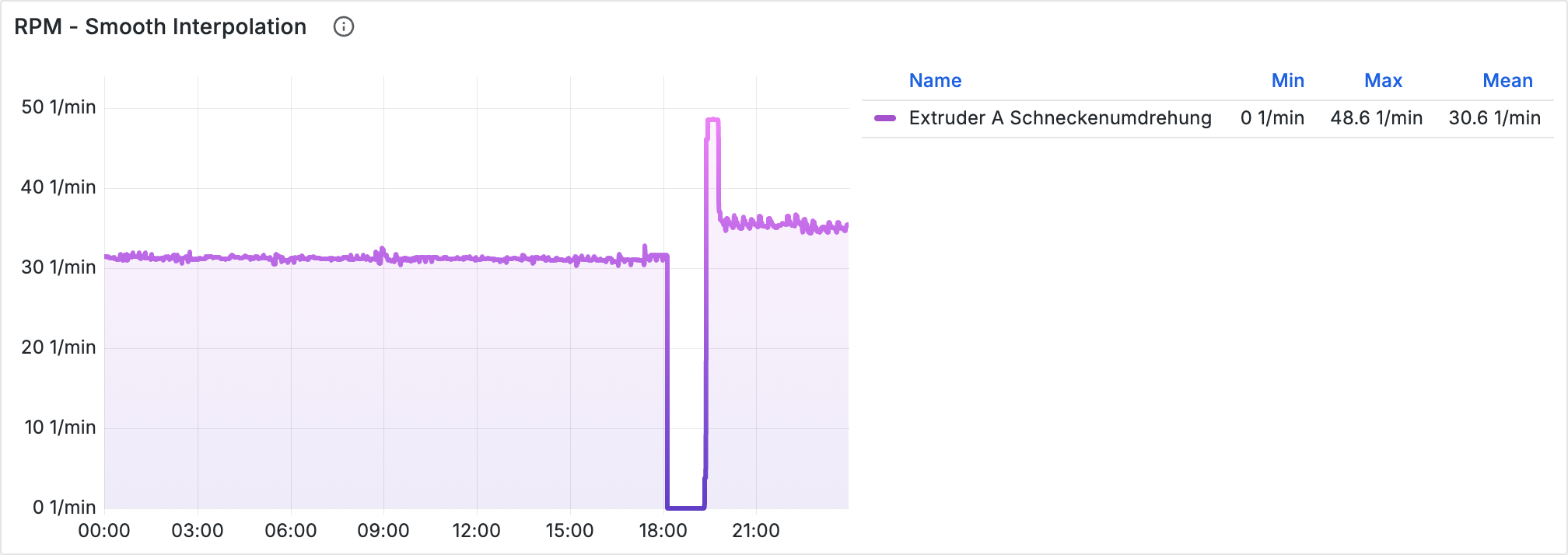

Line interpolation
Determines how data points are connected:
Linear
Most data (default)
Smooth
Trends, presentations
Step before/after
Discrete state changes
Legend and tooltip
Legend mode
Search for Legend in the sidebar and choose the mode:
List
Simple list of series names
Table
Table with configurable statistics
Hidden
No legend
In Table mode you can display calculated values under Values (for example, Min, Max, Mean, Last *). In manufacturing, Min, Max, and Mean help you quickly see whether values stayed within expected ranges.
Tooltip mode
Under Tooltip > Tooltip mode:
Single
Shows only the selected series
All
Shows all series at that point in time
Hidden
No tooltip
Use All when comparing multiple series. In All mode you can set the sort order to Descending to see the highest value first.
The finished panel
The individual steps together produce a process monitoring panel. Here is the full configuration:
Variables
Abzugsgeschwindigkeit, Abzugsgeschwindigkeit (Soll)
Line width
2
Fill opacity
10
Legend mode
Table
Legend values
Min, Max, Mean
Tooltip mode
All
Overrides
Abzugsgeschwindigkeit
Blue (fixed)
Solid
Abzugsgeschwindigkeit (Soll)
Orange (fixed)
Dash (10, 10)
Tips
Color choice: Blue for actual/measured values, orange/yellow for setpoints, red only for errors/alerts.
Fill: For a single variable use 0-20%, when comparing two variables use 0-10% or none at all.
Performance: More than 10 variables in one panel can slow down rendering. Split the data across multiple panels instead.
